Zimi Model Toucan TC3D040 - 1:35 3D Printed Helicopter Engine for A/MH-6J Little Bird

3D printed helicopter engine set for A/MH-6J Little Bird kits (Kitty Hawk / Zimi Model) in 1:35 scale

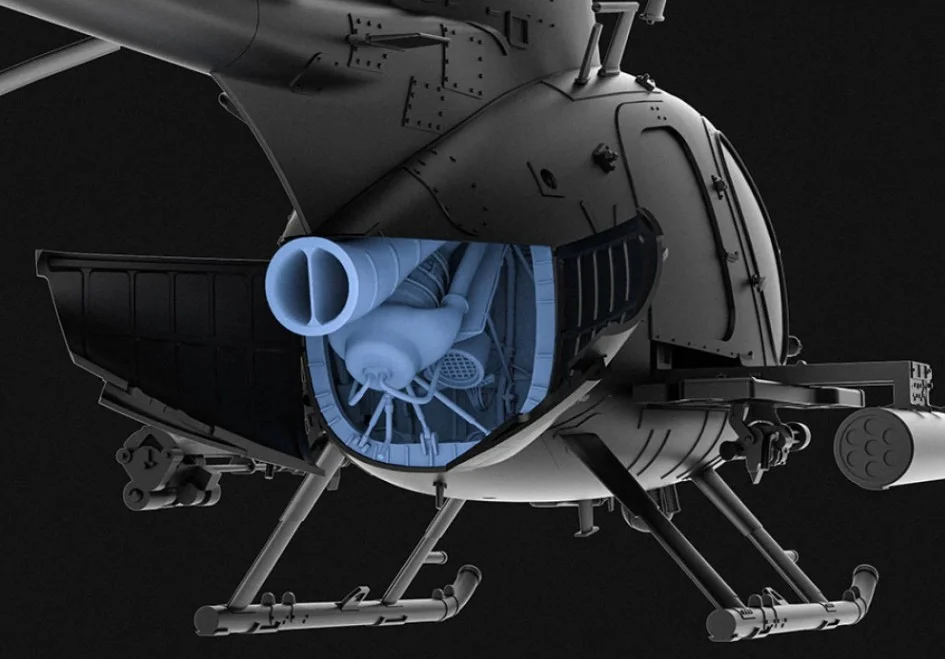

Toucan TC3D040 is a detail set for 1:35 models of the A/MH-6J Little Bird light helicopter. It replaces the kit's moulded powerplant with a precisely printed equivalent, which matters in practice: Little Bird kits reproduce the engine bay with opening covers, so the engine stays visible on the finished model and is one of its most rewarding display features.

The set is designed around specific base kits — those by Kitty Hawk and their releases under the Zimi Model brand, which use the same tooling. It is worth checking the catalogue number of your kit before purchase.

What's in the box:

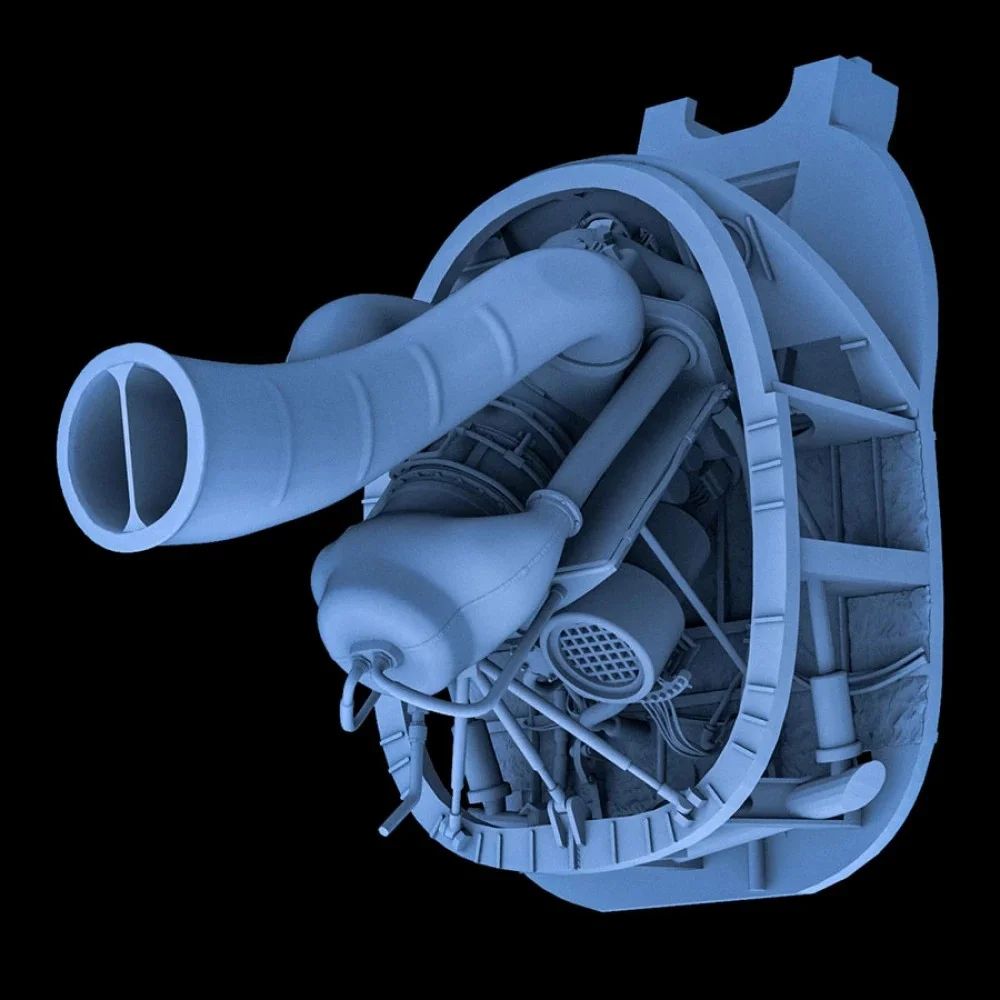

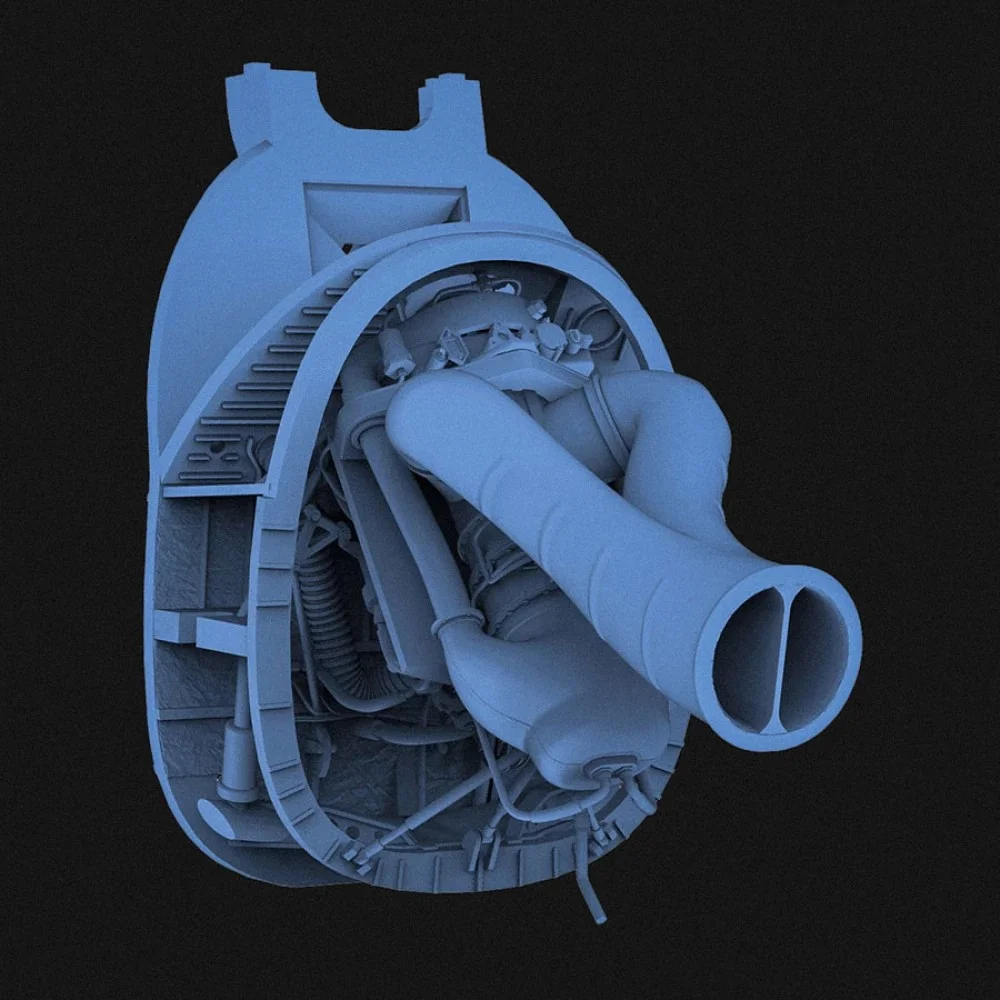

• 3D printed resin parts forming the helicopter engine

Set specifications:

• Scale: 1:35
• Catalogue number: TC3D040
• Manufacturer: Toucan
• Intended for: A/MH-6J Little Bird kits by Kitty Hawk (KH50002, KH50003, KH50004) and Zimi Model (ZM50001, ZM50002, ZM50003)
• Type: replacement helicopter engine
• Material / technology: resin, 3D printed

3D printed parts – detail unattainable in injection moulding

3D printing in resin makes it possible to reproduce shapes that injection moulding simply cannot deliver: thin cables, openwork structures, parts with complex three-dimensional geometry and details a fraction of a millimetre thick. An injection mould requires every part to be extractable from a split tool, which imposes simplifications and compromises. A print is built up layer by layer without such constraints, so the parts retain full three-dimensionality.

Printed parts come attached to fine supports which need to be removed — most conveniently with a sharp hobby knife or a fine saw, with any remaining marks smoothed using fine sanding paper. Resin is harder and more brittle than polystyrene, so small parts are best separated carefully while held with tweezers. Cyanoacrylate glue is used for assembly, as polystyrene cement has no effect on resin. Washing the parts in warm water with a little detergent before painting is recommended, to remove any residue from the production process, followed by a coat of primer, which noticeably improves paint adhesion.

About the helicopter – A/MH-6J Little Bird:

The Little Bird is the military development of the civil MD 500/530 helicopter family, itself derived from the 1960s Hughes OH-6 Cayuse. Its distinctive egg-shaped, heavily glazed cabin, slender tail boom and small dimensions allow it to operate from places inaccessible to larger helicopters — rooftops, narrow streets or small clearings.

The A/MH-6J versions were operated by the 160th Special Operations Aviation Regiment (Airborne), the US Army special operations aviation unit known as the Night Stalkers. The MH-6J is the transport variant, fitted with folding benches on both sides of the fuselage on which special operations troops ride externally — an arrangement allowing a team to be inserted or extracted in seconds. The AH-6J is the armed version, carrying 70 mm rocket pods and M134 7.62 mm miniguns for close air support.

Little Birds have taken part in most American special operations of recent decades — from actions in the Persian Gulf in 1987, through Panama, to Mogadishu in 1993, Iraq and Afghanistan. Under the Mission Enhanced Little Bird programme the fleet was converted to AH-6M/MH-6M standard with a six-blade main rotor and four-blade tail rotor; the programme was completed in 2015.

Original aircraft specifications (A/MH-6J Little Bird):

• Crew: 2 pilots
• Capacity: up to 6 troops (MH-6J, on external benches)
• Main rotor: five-blade (J versions)
• Powerplant: Allison / Rolls-Royce Model 250 turboshaft
• Maximum speed: approx. 280 km/h
• Range: approx. 250 nautical miles without refuelling
• Armament (AH-6J): 70 mm rocket pods, M134 7.62 mm miniguns; other external stores optional
• Airframe: MD 500/530 family
• Principal operator: 160th Special Operations Aviation Regiment (Airborne)

About the manufacturer – Toucan:

Toucan is a Chinese aftermarket brand active since 2024, operating within the Zimi Model group alongside Panda, Kitty Hawk and DRAMi. Its range covers two lines: conversion sets numbered in the TC35xxx series and 3D printed detail sets in the TC3Dxxx series. The brand concentrates on complementing base kits from the group's own catalogue, which means its sets are designed directly around specific sprues rather than adapted to them afterwards. The Toucan catalogue is dominated by exterior details for wheeled and tracked vehicles, aircraft weapons, helicopter rotor and interior components, and weighted tyres — precisely the parts that are hardest to reproduce faithfully in injection moulding.
