Pre-order Piko 50766 H0 - TKt48 steam locomotive, PKP, ep.III

€380.93

Quantity

pcs

Availability:

preorder

Description

Pre-order product! Your order will be fulfilled once the model is released by the manufacturer. Estimated availability: end of September 2026. The delivery date is approximate and may change for reasons beyond our control.

H0 scale model of the PKP TKt48 steam tank locomotive – analog version, Era III

PIKO 50766 is a highly detailed H0 scale model of the TKt48 steam tank locomotive, one of the most versatile steam engines used by Polish State Railways. This version represents a PKP locomotive from Era III and is designed for analog DC operation.

Scale: H0 (1:87)
Model length (over buffers): 163 mm
Railway administration: PKP – Polish State Railways
Era: III
Control system: analog DC
Decoder interface: NEM 658 – 22-pin (PluX22)
Lighting: direction-dependent white/red headlights
Cab, chassis and firebox lighting: available after digital decoder installation
Traction tyres: 2
Minimum radius: 422 mm
Couplings: NEM coupling pocket
The model is painted and ready to run

The model features finely detailed brake gear, metal wheels, delicate handrails and steps, as well as a fully detailed driver’s cab interior with clear window inserts. Its high adhesive weight ensures excellent traction and smooth running.

Thanks to the PluX22 interface, the locomotive can easily be upgraded to digital control, enabling additional lighting and operational functions.

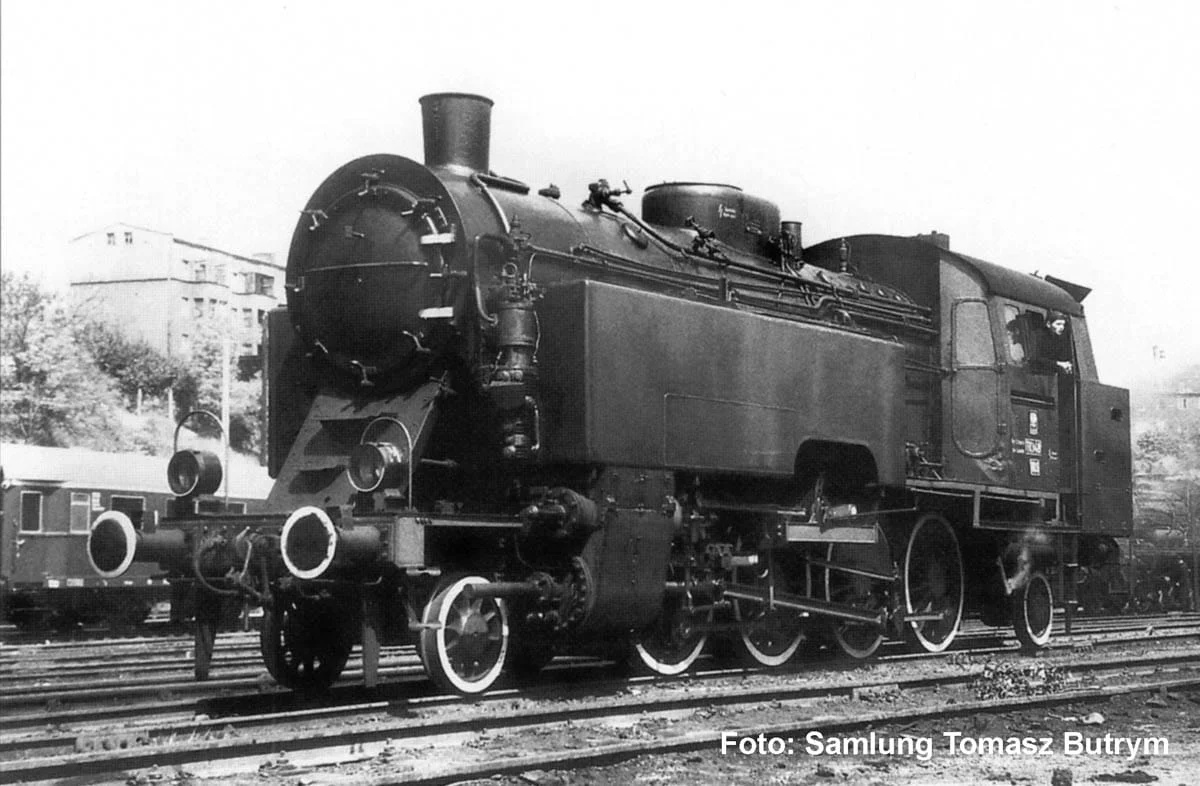

History of the TKt48 locomotive

The TKt48 class steam tank locomotives were designed as universal engines for passenger and freight services on mountainous and secondary lines. Between 1950 and 1957, 191 units were built for PKP by Fablok and Cegielski.

With a maximum speed of 80 km/h in both directions and high adhesive weight, the TKt48 proved ideal for branch lines in mountainous regions such as the Sudetes and Tatra Mountains.

Declining traffic and line closures led to their withdrawal by 1989, although several examples have survived as preserved museum locomotives.

About PIKO

PIKO is one of the world’s leading model railway manufacturers, active since 1949. The company offers a wide range of locomotives, rolling stock and accessories across its Hobby, Expert and Classic product lines.

The PIKO Expert series focuses on highly detailed models with faithful prototype accuracy and reliable running characteristics for demanding model railway layouts.

Certificates and safety warnings

- This product is a collector's item intended for users aged 14 and above, and is not a toy for children.
- Before use, read the user manual, use the product as intended and follow the safety instructions contained in the manual and on the packaging.
- May contain small parts that pose a choking/swallowing hazard.
- Use indoors. Protect from moisture and water, which may damage electrical or mechanical components.
- Use the product only when it is in perfect condition.
- Do not use a damaged power cord or power supply. If the cord or power supply shows signs of damage, replace it immediately with original accessories recommended by the manufacturer.
- The product may only be used by children under adult supervision.
- Use only with recommended accessories and additional components.
- Ensure good ventilation: do not block ventilation openings, do not cover devices and do not use in closed, heated spaces.
- Do not expose to prolonged sunlight.
- Before connecting to the power supply, check that the voltage in the socket meets the requirements specified in the manual.
- Do not touch the rails when the control panel is live.
- Do not place metal objects on the rails; this may cause a short circuit and damage the system.
- Disconnect the power supply from the mains after use.
- Do not disassemble the device. Disassembling the controller, control panel or power supply yourself may damage the equipment, void the warranty and cause electric shock.
- If the product has stopped functioning properly, contact customer service/support.
