T-Model TK72015 - 1:72 Decal Set for M1114 HMMWV

T-Model decal sheet for 1:72 M1114 HMMWV models (for 4 vehicles)

T-Model TK72015 is a waterslide decal sheet for marking 1:72 models of the up-armoured HMMWV M1114. It carries markings and stencilling sufficient for four vehicles, along with decals intended for equipment and stowage — the kind of small printing that often decides whether a finished model reads as a machine in everyday service.

The sheet was developed primarily for the M1114 kits by T-Model, but it can equally be used on other models of this vehicle in the same scale. A placement guide showing the position of each marking is included.

What is in the box:

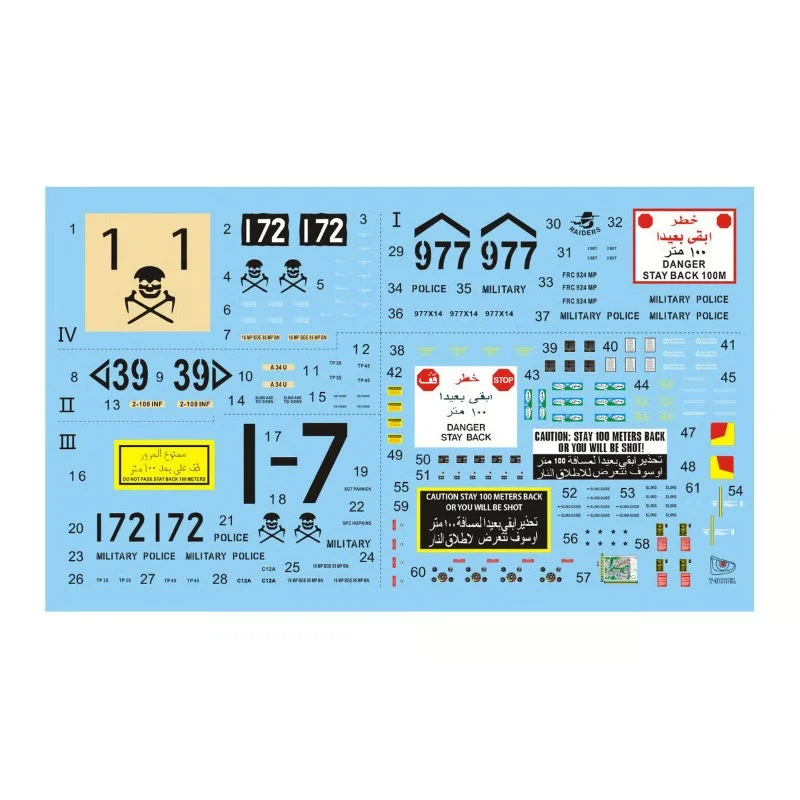

• Waterslide decal sheet with markings and stencilling for 4 vehicles
• Decals for equipment and stowage

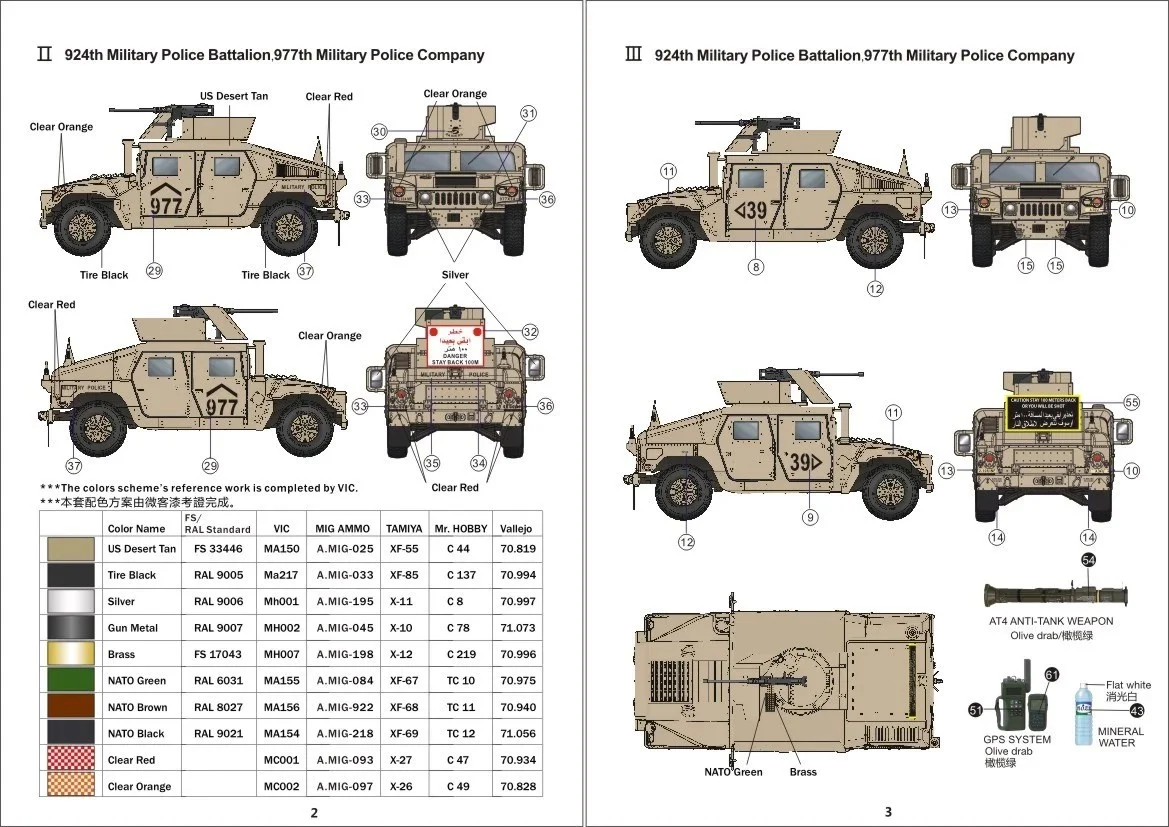

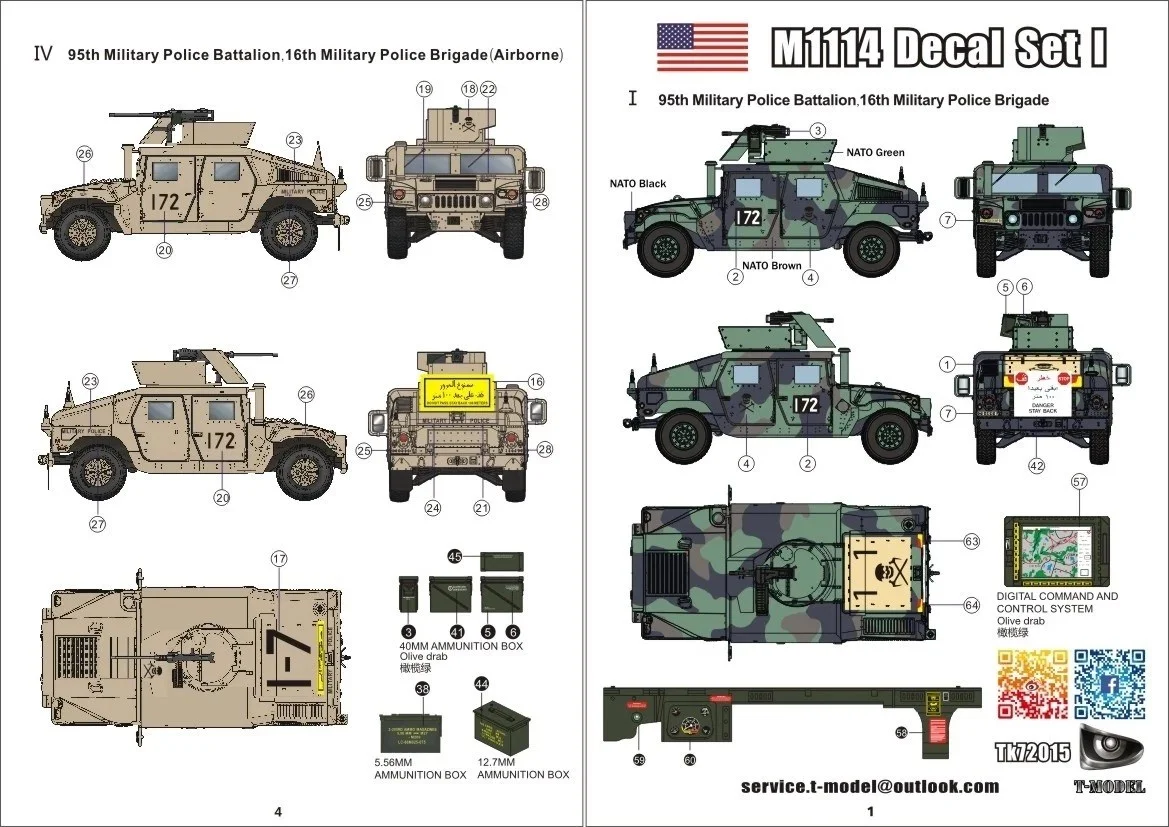

• Placement guide

Product specifications:

• Scale: 1:72
• Catalogue number: TK72015
• Manufacturer: T-Model
• Intended kit: 1:72 M1114 HMMWV, primarily T-Model kits
• Type: waterslide decal sheet
• Coverage: markings for 4 vehicles

Waterslide decals – markings on the model without painting

A waterslide decal is a thin printed film carried on a water-soluble backing. Once the sheet has been soaked, the print slides off the paper and is transferred onto the model, where it settles onto the surface as it dries. This makes it possible to reproduce small tactical numbers, insignia and stencilling without brush painting or masking — in 1:72 many of these markings are only a few millimetres across.

A common technique is to apply decals over a gloss coat, which prevents silvering, and then seal them with a matt varnish, since military vehicles are usually finished matt. Where a marking crosses rivets, ribs or other detail, decal softening solutions help draw the print down onto the shape of the surface. It is worth working on a clean, grease-free surface and applying the decals only once the varnish has fully dried.

About the vehicle – HMMWV M1114:

The M1114 is the armoured version of the HMMWV, or Humvee, developed by AM General and known as the Up-Armored HMMWV. It was introduced in the second half of the 1990s, with mass production following after 2003, when fighting in Iraq showed how much light transport vehicles needed genuine protection against small-arms fire and improvised explosive devices.

Unlike vehicles fitted with improvised add-on plating, the M1114 has factory-integrated hull armour, bullet-resistant glass, reinforced suspension and a more powerful 6.5-litre turbocharged diesel engine to offset the added weight. A gunner turret was fitted as standard. Combat weight is around 5.5 t, the crew numbers four, and top speed is about 110 km/h.

The vehicle was modified over the following years. Additions included the FRAG Kit 5 door and side armour, the GPK turret and the armoured rotating O-GPK turret, as well as CROWS remote weapon stations. As a result the same base vehicle appears in a number of visibly different configurations, which also widens the modelling possibilities.

Original vehicle specifications (HMMWV M1114):

• Manufacturer: AM General
• Introduced: second half of the 1990s, mass production after 2003
• Weight: approx. 5.5 t
• Crew: 4
• Powerplant: 6.5-litre turbocharged diesel engine
• Top speed: approx. 110 km/h
• Protection: factory-integrated hull armour, bullet-resistant glass, reinforced suspension
• Armament: gunner position in a roof turret
• Later modifications: FRAG Kit 5, GPK turret, armoured O-GPK turret, CROWS remote weapon stations

About the manufacturer – T-Model:

T-Model is a Chinese producer of scale models and modelling accessories based in Beijing. The brand is best known for 1:72 and 1:35 kits and accessories covering modern American vehicles and German World War II railway rolling stock. The range includes plastic model kits as well as photo-etched sets, wooden decks, turned metal details, masks and decals. As a result, many kits can be completed with accessories from the same manufacturer, designed around a specific base kit.
